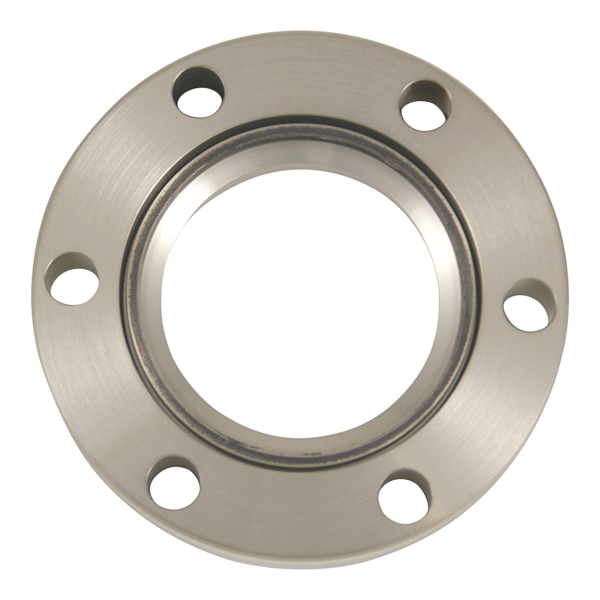

DN40CF Quartz viewport, Excimer quality
$953.00 ex. VAT
Product description
DN40CF Quarz Viewport, Excimer-Quality, View Ø 35mm
Material Corning HPFS 7980 Excimer Grade 193 Fused Silica
Parallelism < 10 arcsec
Flatness λ/4@632nm
Surface 20/10 Scratch/Dig
Temperature reange -100°C – 200°C
Transmission > 99,5%@193nm(Interne)
Homogeneity Grade A
Inclusion class 0
| Vacuum Suitability | |
|---|---|
| Flange Type | |
| Flange Name | |
| Flange Material | |
| Flange Style | |
| Max. Operating Temperature (°C) | |
| Part Type | |
| Viewport Diameter (mm) | |
| Viewport Material | |
| Coating | |
| Transmitted Wavefront Distortion (TWD) | |
| Polish | |
| Parallelism | |
| Inclusions | |
| Homogeneity |
