Recent Products


Allectra is committed to developing new products which can yield technical advantage and cost-saving over conventional components.

By using these products, our customers are able to take advantage of the latest High Technology advancements we have been able to identify. For example, our Circular Miniature Feedthroughs are compact and can still hold up to 19 pins. They have now been adopted as a standard by Synchrotrons worldwide.

Our physicists and engineers originate, develop and manufacture components for the High Technology marketplace. These components have included Fibre Optic Feedthroughs, Circular Miniature Feedthroughs, Sub-Miniature D Type Feedthroughs and High Frequency Feedthroughs (up to 40 GHz).


High Current standard Sub-D Feedthroughs

A new pin technology means standard Sub-D feedthroughs with 9 to 50 pins can now be used for significantly higher current ratings. The continuous current per pin is 6A (all pins loaded) and for short periods, 10A per pin, by using special crimp pins and a new in-vacuum cable. Opposite: 2 x High Current (HC) 15 -pin Feedthroughs on a 63CF flange. With 30 pins, these feedthroughs can transport 180A continuously or up to 300A for a short time into the vacuum system.

Learn More
product development by allectra -HIGH CURRENT STANDARD SUB-D FEEDTHROUGHS

product development -M12 FEEDTHROUGH

M12 Feedthrough

Allectra offers a UHV M12 Feedthrough including UHV compatible connector. For less demanding applications, HV and standard connectors can be used on both sides.
M12 Connectors are very commonly used for industrial automation and sensor applications.
The Feedthrough has 4 pins and a voltage rating of 250V. The maximum current is 3A and the temperature range is -200°C to +230°C.
For air side use, Allectra offers Quick Disconnect connectors, which only need a 90° turn of the nut to be secured. Allectra recommends the shielded double twisted pair wire 311-KAPM-060-PAIR2 to be used with this feedthrough.

Learn More

PT100 RESISTORS WITH A SCREW CLAMP MOUNTING

Allectra offers a wide range PT100 resistor for precise temperature measurement between -200°C and +750°C. The class A resistor offers very low tolerances and a higher stability than thermocouples.

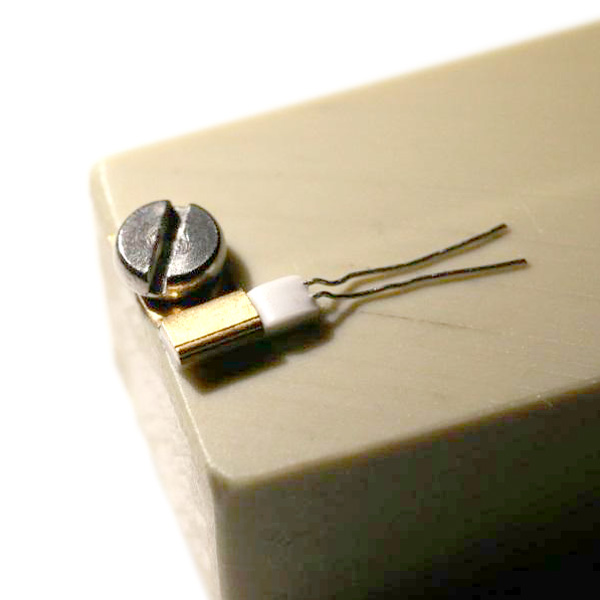

The resistor is offered on its own, with 3 or 4 cables connected and as a set including thermal contact foil and screw-on clamp.
Image: 343-PT100-C1-SET1, Actual dimensions 1.6mm x 5mm

Learn More

PT100 RESISTORS WITH A SCREW CLAMP MOUNTING

THE ALLECTRA TRIAXIAL FEEDTHROUGH 50 OHM

THE ALLECTRA TRIAXIAL FEEDTHROUGH 50 Ohm

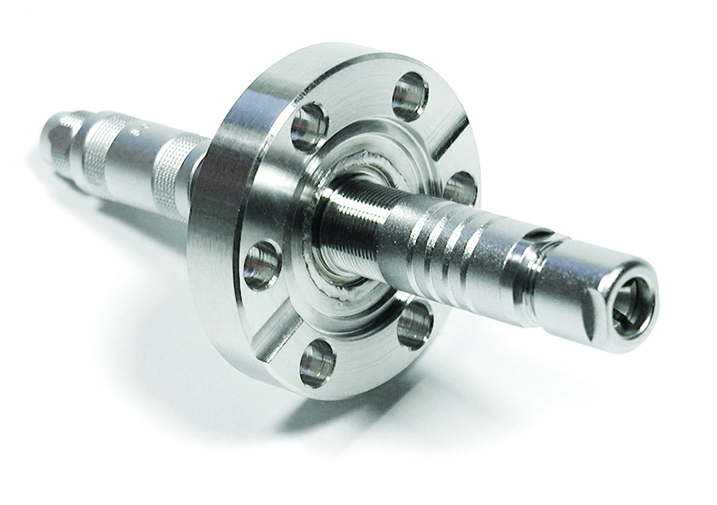

The Allectra Triaxial feedthrough 50 Ohm is designed for use with cable which has a shielded conductor, which is itself surrounded by a second isolated shield. The conductor and inner shield have insulated paths through the feedthrough while the outer second shield is connected to ground. This is the ideal component for low current or voltage measurements, where high accuracy and lowest disruption of the signal are required. For example, this component can be used for accurate beam positioning for synchrotron type applications.

Learn More

RADIATION RESISTANT KAP301 INSULATED WIRES

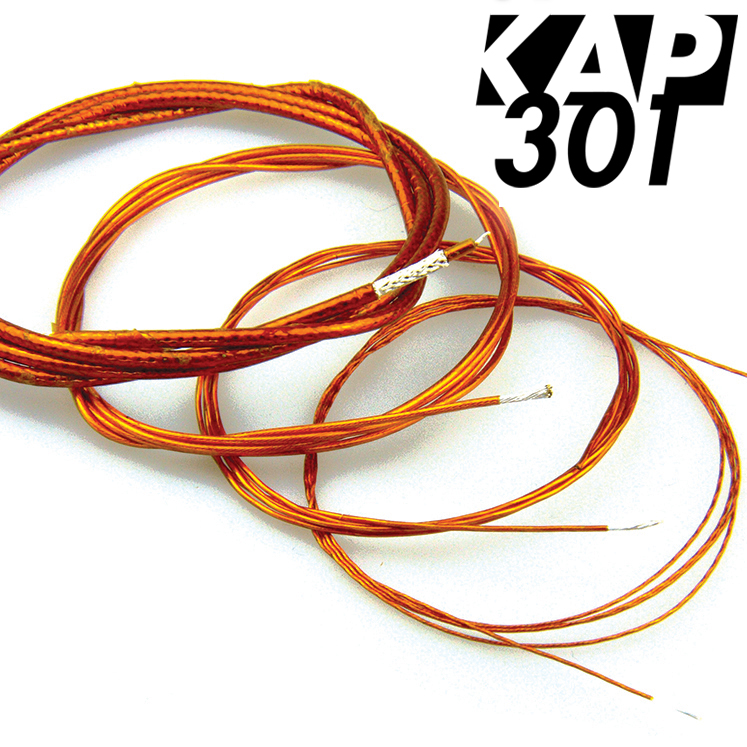

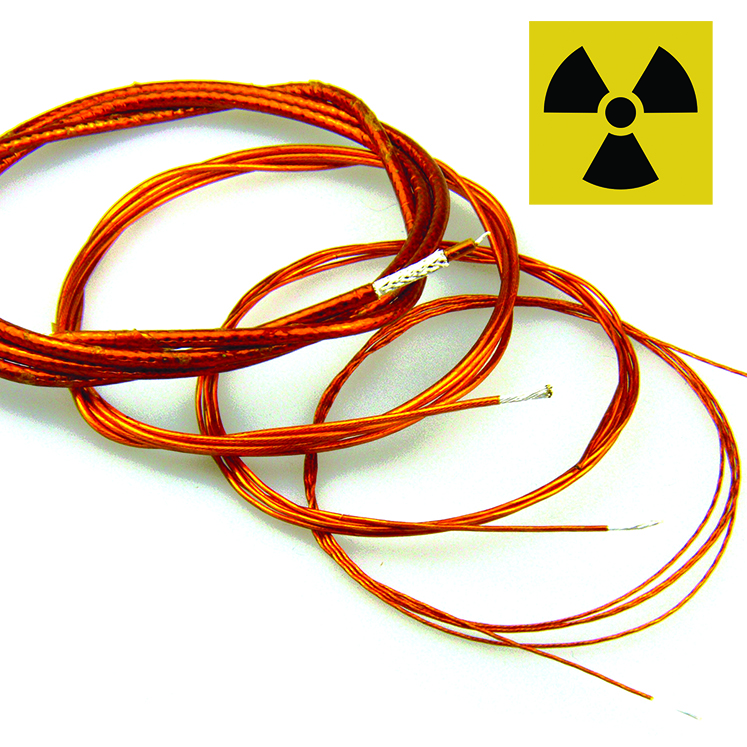

Allectra now offer our exclusive KAP301 radiation resistant Kapton® insulated wires. Compared to the standard wires, the radiation resistance is increased by a factor of 100. Also, the maximum usable temperature is higher and goes up to 300°C.

The following sizes are available:
Multi-strand wire, 0.36mm diameter 301-KAPM-035
Multi-strand wire, 0.6mm diameter 301-KAPM-060

General Specifications: – Radiation resistant to 10e9 rad – temperature resistant up to 300°C – voltage rating in vacuum 7.5KV DC

Learn More

RADIATION RESISTANT KAP301 INSULATED WIRES

PRESSURE BURST DISKS THREE VERSIONS

PRESSURE BURST DISKS THREE VERSIONS

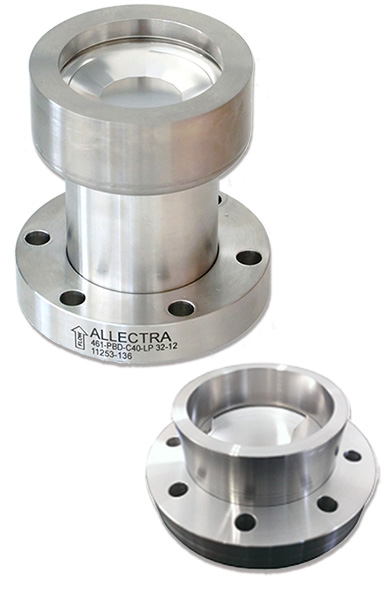

Allectra has introduced a Low Pressure version of the standard Pressure Burst Disk and an Ultra Low Pressure version. The Allectra Pressure Burst Disks are designed to rupture and release gas in the event of potentially hazardous pressures greater than atmospheric pressure occurring in the Vacuum System.

The Standard type: membrane ruptures at system pressure of max. 1.7 bar overpressure.

Low Pressure type: membrane ruptures at system pressure of max. 0.8 bar overpressure (ASME-UD certified).

Ultra Low Pressure type: has a rupture pressure below 0.5 bar overpressure on a 63CF or ISO63 flange. With this component, the overpressure regulations do not apply to the system.

Some features of the Pressure Burst Disk are as follows:

-UHV compatible, high bakeable to 350°C and leak tight to <5×10-10 mbar l/s

-It is essential for all systems with LN/LHe cooling

-Optional gas recovery system is available

-DN40CF and DN16CF versions / KF types and custom flanges

Learn More

RADIATION RESISTANT WIRE WITH PEEK INSULATION

PEEK insulated cables combine high radiation resistance and a very high insulation resistance over a broad temperature range.
These are outstanding properties for use in Ultra High Vacuum Systems. The low water absorption in air (0.1%) combined with a high diffusion rate of water also make it ideal for systems which cannot be baked.
The high insulation resistance and a high breakdown voltage make this insulated cable ideal for delicate signals and high voltage applications.

Learn More

RADIATION RESISTANT WIRE WITH PEEK INSULATION

LIMIT SWITCH – TECHNOLOGY FOR NUCLEAR FUSION

LIMIT SWITCH – TECHNOLOGY FOR NUCLEAR FUSION

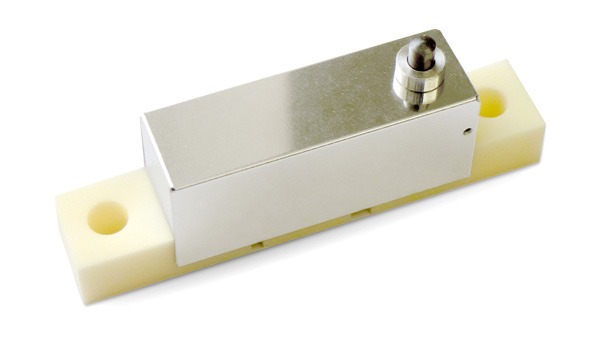

This switch (363-VH3-1) is a high temperature, high radiation resistant switch with all materials compliant to ITER specifications.

Learn More

BASE PLATE (BULKHEAD) Sub-D Feedthough

For applications down to 10-7 mbar.

Can be used with aluminium chambers as they are bolted.
Rectangular base plate 9/15/25/37/50 pin feedthroughs available.
Other feedthroughs mountable to same base plate (Coaxial for example).

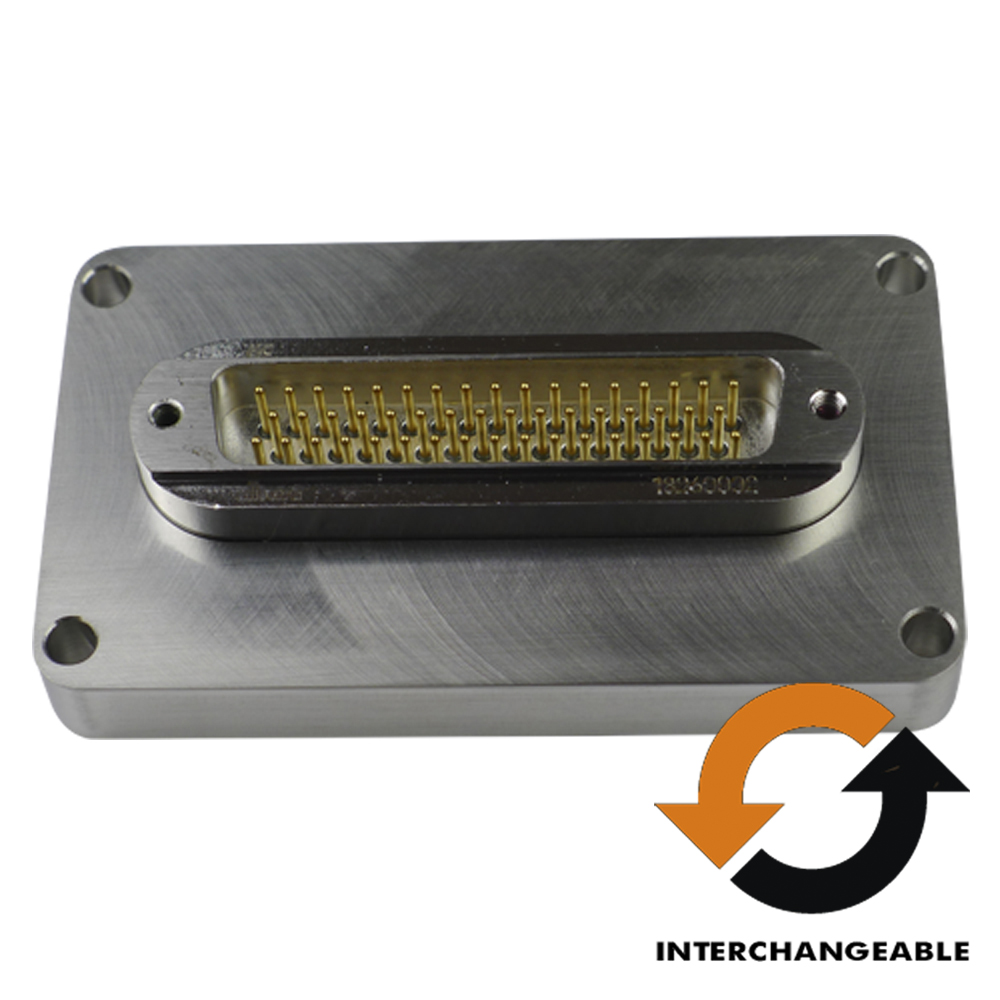

Base plate dimensions are the same for all feedthroughs making them easily interchangeable.

Learn More

BASE PLATE (BULKHEAD) SUB-D FEEDTROUGH

SMA HIGH FREQUENCY, 27 GHz FEEDTHOUGH

SMA HIGH FREQUENCY, 27GHZ, FEEDTHROUGH

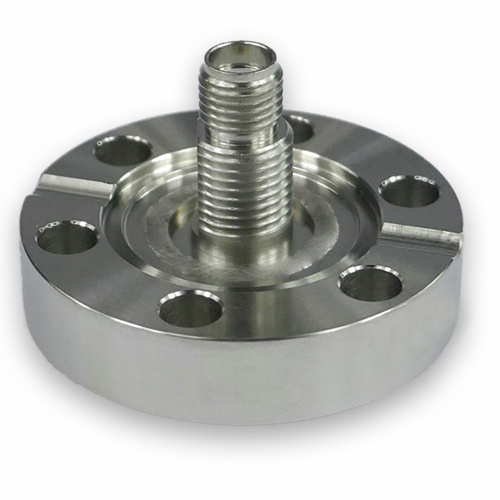

Double sided SMA Feedthough.
Maximum frequency range of 27 GHz.
Cost effective alternative to SMA-K or 2.92mm versions.
Stainless steel housing with gold plated centre contact.
Up to 4 feedthroughs can be fitted to a DN40CF flange.

Learn More
